How to wire a Digital Output DO on an eWON ?
Last Updated 6 years ago

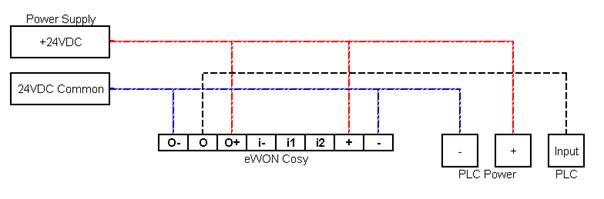

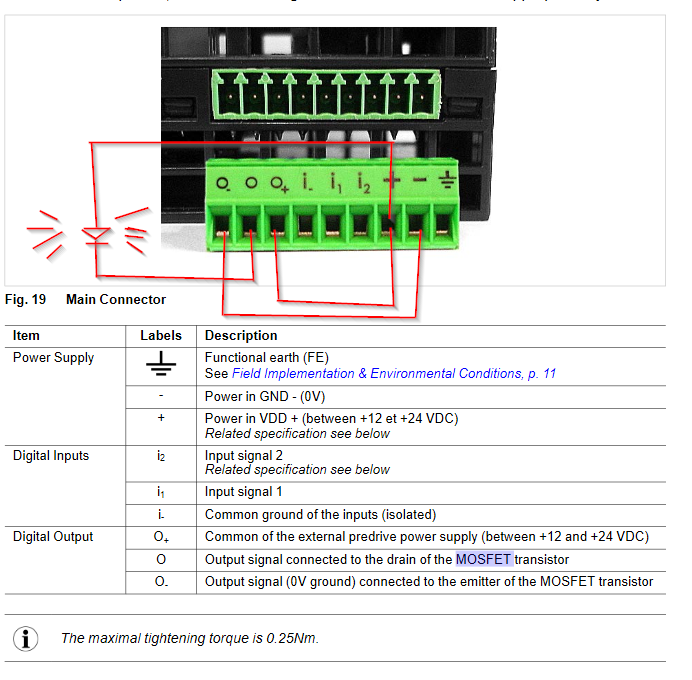

Please see the following diagrams to understand how DO works on an eWON.
Digital output signal when ON delivers a -ve charge. Hence it sinks charge as opposed to providing a +ve 24V.
e.g. When you create an eWON Tag inside a flexy address, DO1. It is a Boolean tag. Value 1 will create a -ve signal on the "O".
Digital output signal when ON delivers a -ve charge. Hence it sinks charge as opposed to providing a +ve 24V.
e.g. When you create an eWON Tag inside a flexy address, DO1. It is a Boolean tag. Value 1 will create a -ve signal on the "O".
